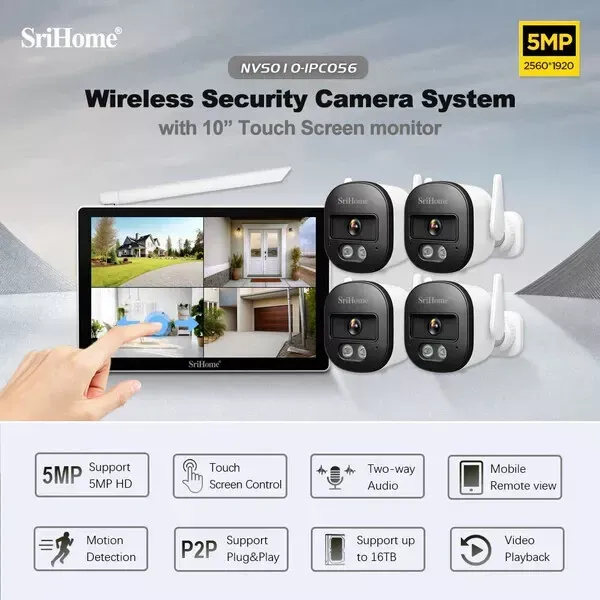

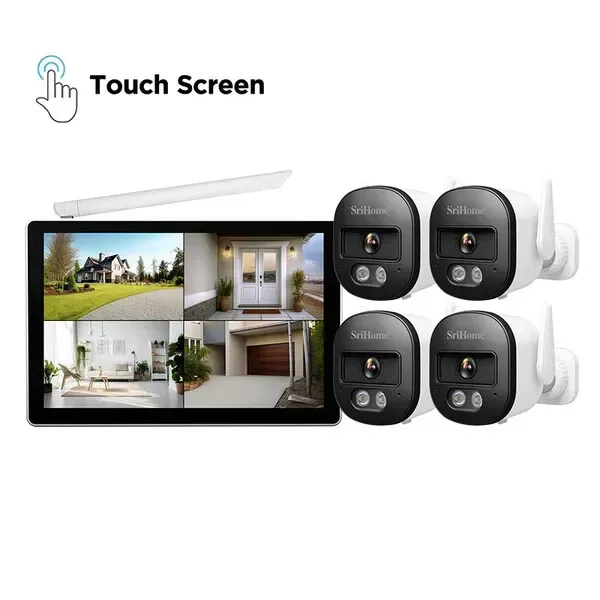

SriHome WIFI 4 x CAMERA Set Surveillance 5MP Wireless Security 2-Way Audio with 10inch touch screen tablet
the package comes also with 4 x 8 meters type-c Cables and UK three pin Plugs
| WiFi NVR | NVS010(WiFi version) |
| Display parameters | Screen size: 10.1-inch LCD screen Display resolution: 800xRGB(3)x1280 Touch: Support multi-touch |
| Video parameters | Video input: 8 CH Video output interface: 1 HDMI, 1 VGA Compression format: H265/H264/Smart264 Coding capability: 8*5M/25fps Decoding capability: 1*5M/25fps (main stream); 8*D1/25fps (auxiliary stream) Video decoding format: H265; H.264 |
| Audio parameters | Audio: two-way voice Audio output: HDMI and 1-way AUX interface audio output, built-in speaker Audio decoding format: G.711U; AAC |
| Hard disk parameters | Hard drive interface: 1 SATA interface (only supports 2.5-inch hard drives), SSD&HDD Hard drive capacity: maximum support 16TB |
| Recording/playback | Recording mode: scheduled recording, alarm recording Playback mode: regular playback and APP playback Backup mode: regular backup |
| Network management | WiFi: 2.4G, only for standard camera connection WAN: RJ45 wired connection Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc. |
| Call the police | Alarm mode: motion detection alarm, humanoid detection alarm Alarm reminder: APP push, alarm whistle |
| Nxternal interface | Network interface: one RJ45 network interface USB interface: 1 USB2.0 HDMI interface: 1 VGA interface: 1 Audio interface: 1 AUX audio output interface Power interface: 1 DC 12V 2A (5.5*2.1*10) |
| Other | Working temperature: -10°C ~50°C Working humidity: 10%~90% RH |
| APP | Support SriHome APP, IOS and Android remote access |
| PTZ camera | |
| Camera | IPC056 (WiFi) |
| System | Multi-core high-speed processor 1/3 inch, 5 million high-definition color CMOS sensor Compression format: H.265 |
| lens | Lens parameters: Focal length: 4mm, 5 million pixels Viewing angle: Field of view: D 110 H 80 V 58 |
| Video | Resolution: 1920P(2560*1920), VGA(480*360) Frame frequency: 15 frames IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect |
| Audio | Built-in microphone and speaker, supports two-way voice Protocol: G711 |
| Night vision | Alarm mode: The default is black and white night vision, when a human figure is detected, the white light is turned on White light mode: Working period: 17:00~8:00, turn on the white light, full color night vision, adjustable brightness Infrared mode: Turn off the white light and switch to normal night vision |
| Alarm mode | Alarm: motion detection alarm, humanoid alarm Siren: Alarm whistle can be set Area detection: Supports customization of motion detection alarm areas to improve alarm accuracy |
| Wireless | Wireless: 2.4G (only connected to NVS001E/NVS010 host) Network distribution mode: QR code network distribution, button network distribution |
| Other | Product type: plastic gun, suitable for indoor and outdoor use Power adapter: input AC: 100~240V, output DC: 5V Working temperature: -10°C ~50°C Weight: Net weight 230 grams (actual weight shall prevail) Body size: 78*66*75mm (length x width x height) |
| Wireless Kit Accessories List | |
| packing list | NVR: 1 NVS010 host Camera: 4 IPC056 (optional 8 wireless cameras) Power adapter: 1 12V2A power supply (NVR), 4 5V power supplies (camera) Screw pack: 5 pack Instructions: 1 copy Network cable: 1 |
| Package packaging | Set weight: 2.8 kg, subject to actual weight Set size: 30.7x30x13.6cm (length x width x height) |
.::: HIGHLIGHTS :::.
1. No Messy Wiring! NVR and Camera are Wi-Fi Transmission.
2. Plug & Play with no professional skill needed. Power On and all camera picture display on screen!
3. (5MP) Camera provide 2K Video Resolution.
4. NVR max support up to 8CH and max support resolution are (5MP) 2K camera.
5. Support storage and playback of up to 16TB hard disk (2.5 inches SATA SSD / HDD)
6. Support for HDMI and VGA or MIPI screen output
7. Two-way voice, built-in omni-directional microphone and speaker on both camera & nvr. Talk & Listen through APP or NVR host unit directly.
8. Night Vision. With Build-in IR Infra-Red, auto on IR when in dark mode and once motion detect, LED White Light are turn on to capture in color mode.
✅ PACKAGE INCLUDED
▶ 1x NVR WIFI 8CH TOUCH SCREEN, 4x CAMERA WIFI, 5x POWER ADAPTER, 1x LAN CABLE, 1x MOUSE, SCREW PACKS.

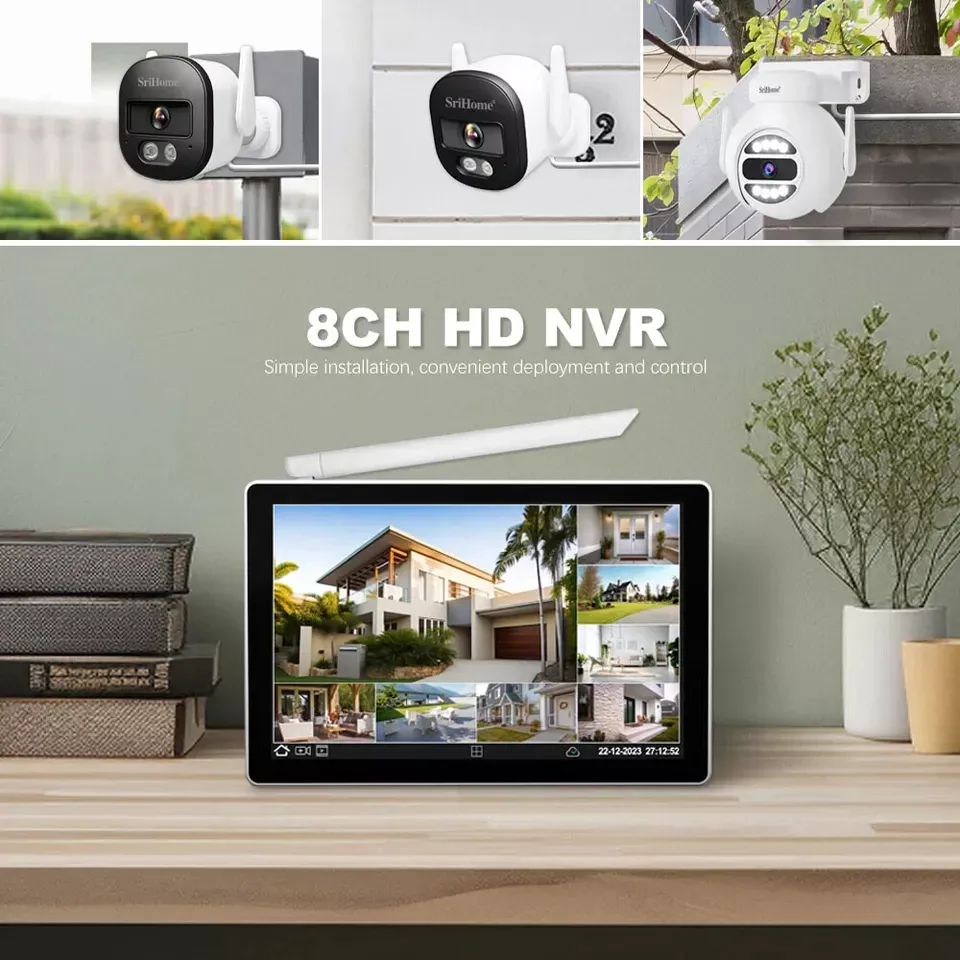

.::: NVR :::.

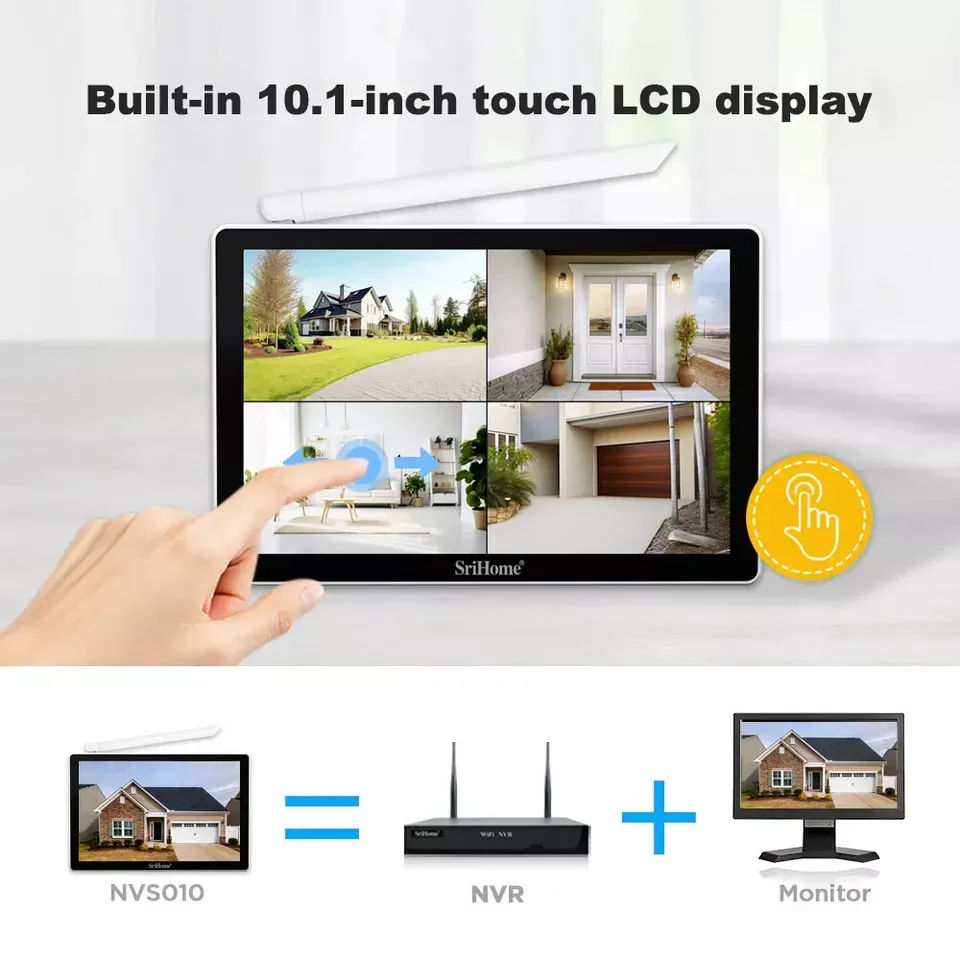

✅ NVR TOUCH SCREEN
▶ Build-in 10.1 inch Touch Screen Monitor, Touch Control
▶ Build-in Wi-Fi, enable wireless connection between camera and nvr through wifi technology
▶ Screen Display Resolution: 800xRGB (3) x 1280
▶ Video input: Max 8 CH
▶ Video output: 1 HDMI, 1 VGA
▶ Compression format: H265/H264
▶ Coding capability: 8x5M/25fps
▶ Decoding capability: 1x5M/25fps (main stream); 8xD1/25fps (auxiliary stream)
▶ Decoding format: H265; H.264
✅ AUDIO (NVR)
▶ Audio: Bidirectional speech. Talk, Listen.
▶ Audio output: HDMI and 1 AUX audio with build-in speaker
▶ Decoding format: G.711U; AAC
✅ STORAGE (NVR)
▶ Hard disk interface: 1 SATA interface (2.5 inch hard disk only), SSH & HDD
▶ Hard drive capacity: maximum support 16TB
▶ Attention: Hard disk are not included by default.
✅ RECORDING & PLAYBACK (NVR)
▶ Recording mode: scheduled recording, alarm recording
▶ Playback mode: regular playback and APP playback
▶ Backup mode: general backup
✅ NETWORK MANAGEMENT (NVR)
▶ WiFi CONNECTION. PLUG & PLAY.
▶ No Wiring, No Network Configuration, and it can be used when is on
▶ WiFi: 2.4Ghz, only for SriHome standard camera connection
▶ WAN: RJ45 wired connection
▶ Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.
✅ INDEPENDENT NETWORKING (NVR)
▶ NO INTERNET ALSO CAN USE
▶ The video recorder and the wireless camera form an independent network, and the video can be monitored without a router
✅ ALARM MODE (NVR)
▶ Alarm mode: motion detection alarm, humanoid detection alarm
▶ Alarm reminder: APP push, alarm whistle

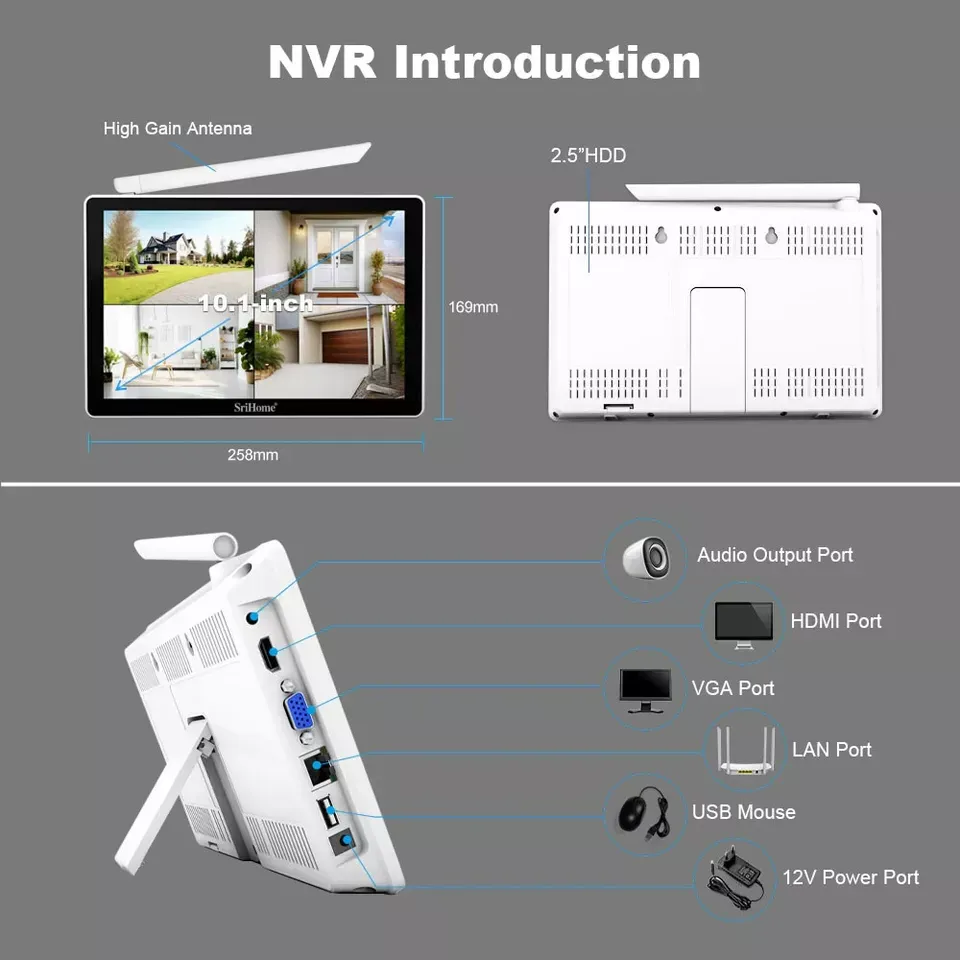

✅ EXTERNAL INTERFACE (NVR)
▶ Network interface: one RJ45 network interface
▶ USB interface: 1 USB2.0
▶ HDMI interface: 1
▶ VGA interface: 1
▶ Audio interface: 1 AUX audio output interface
▶ Power interface: 1 DC 12V 2A (5.5x2.1x10mm)
✅ APP (NVR)
▶ Support SriHome APP, IOS and Android remote access
▶ Support unlimited nvr system to use on 1 app.
▶ It's had no limit on how many user you want to share the cctv system with.
.::: CAMEARA :::.
✅ PTZ CAMERA (5MP)
▶ Multi-core high-speed processor
▶ 1/3 inch, 5 million high-definition color CMOS sensor
▶ Compression format: H.265
▶ Lens parameters: Focal length: 4mm, 5 million pixels
▶ Viewing angle: D 110 H 80 V 58
▶ Resolution: 1920P (2560x1920), VGA(480x360)
▶ Frame frequency: 15 frames
▶ Automatic exposure: Automatic exposure white balance
▶ IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect

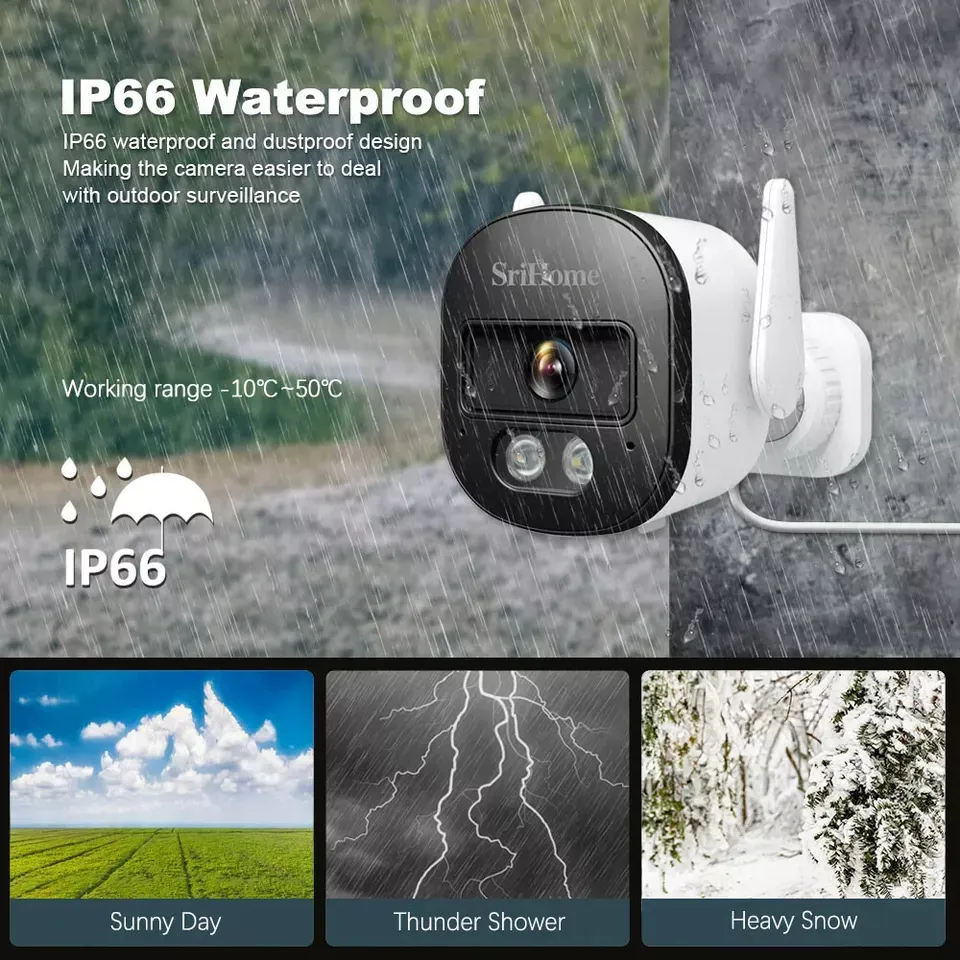

✅ IP66 WATERPROOF (CAMERA)
▶ Rainproof, Weatherproof. Suitable for both Indoor & Outdoor Used.

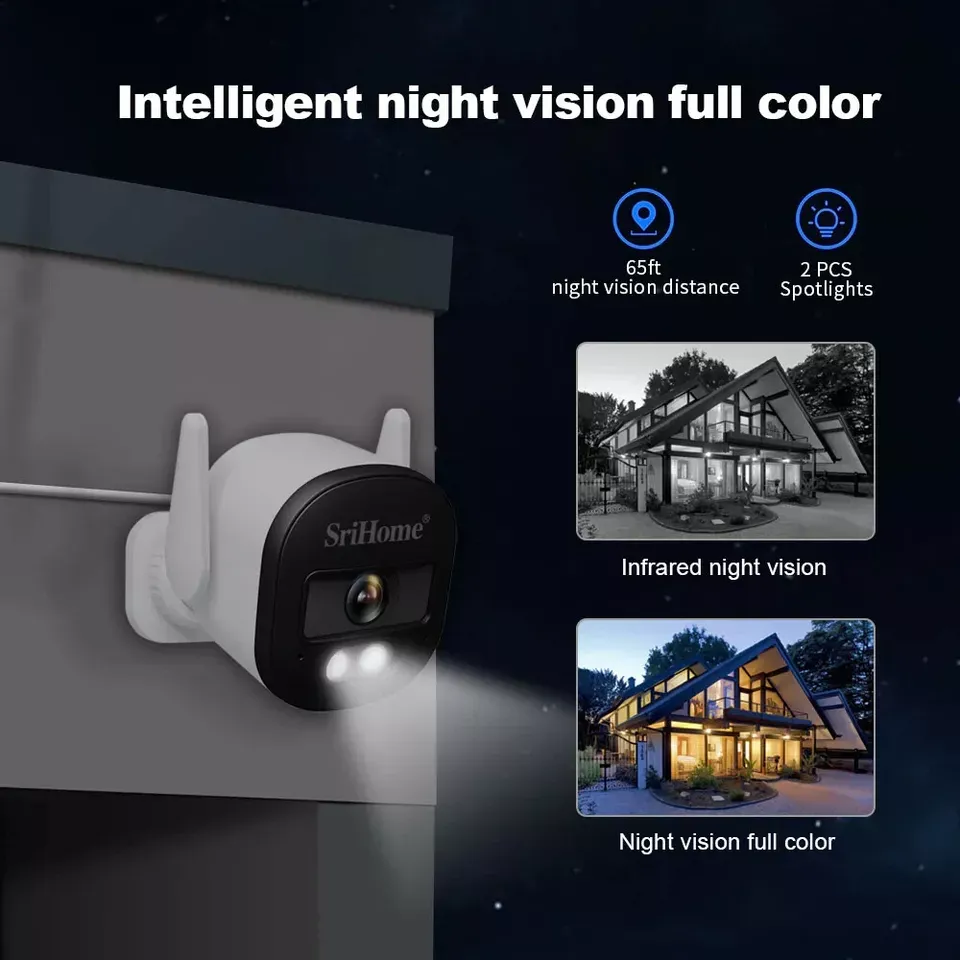

✅ NIGHT VISION (CAMERA)
▶ Alarm mode: The default is black and white night vision, when a human figure is detected, it automatically turns on the white light and switches to full-color night vision
▶ White light mode: from 18:00~7:00, the white light can be switch on, the brightness can be adjusted, and the night vision is full color
▶ Infrared mode: White light is turn off and switched to normal night vision
✅ AUDIO (CAMERA)
▶ Built-in microphone and speaker, supports two-way voice
▶ Protocol: G711
✅ VIDEO RECORDING (CAMERA)
▶ Mode: Plan video, alarm video
▶ Resolution: HD (1920P), SD (360P)
▶ Playback: Support remote video playback
✅ ALARM MODE (CAMERA)
▶ Alarm: motion detection alarm, humanoid alarm
▶ Siren: Alarm whistle can be set
▶ Area detection: Supports customization of motion detection alarm areas to improve alarm accuracy

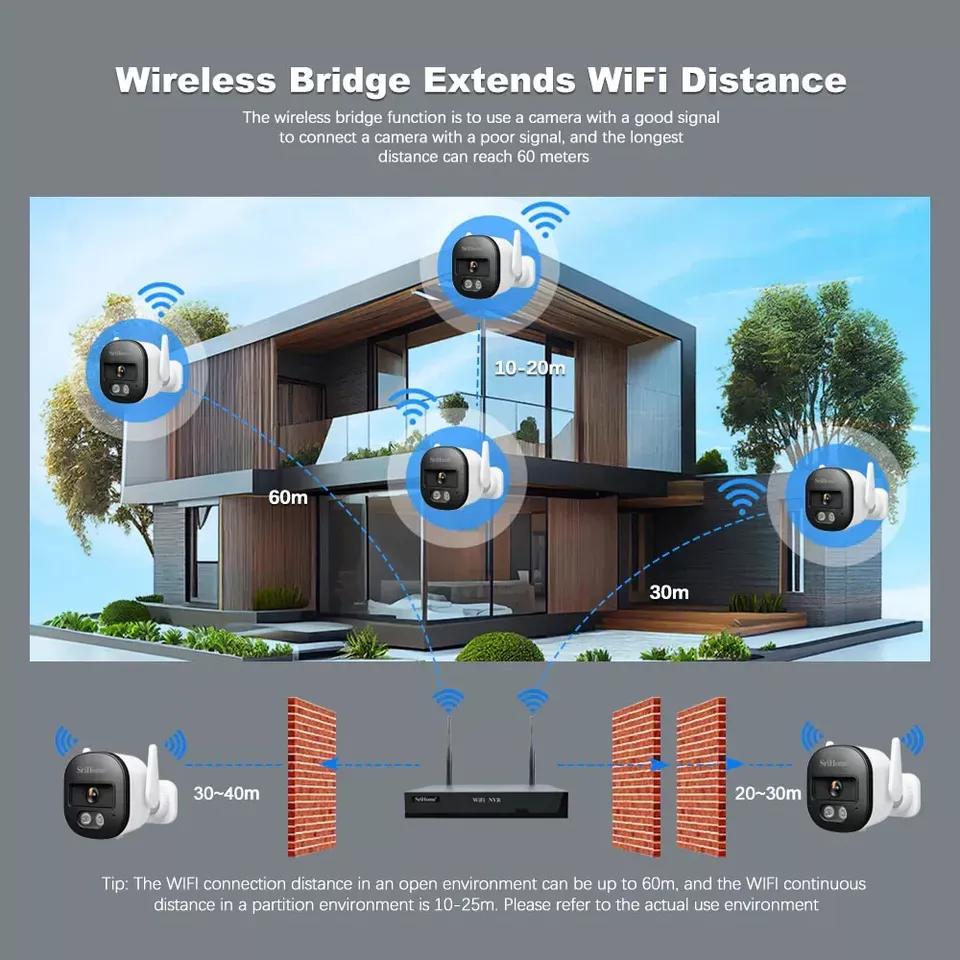

✅ WIRELESS (CAMERA)
▶ Wireless: 2.4G (only connected to NVS001E/NVS010 nvr host)
▶ Network distribution mode: QR code network distribution, button network distribution
✅ OTHER (CAMERA)
▶ Product type: plastic pvc, suitable for indoor and outdoor
▶ Installation Position: Ceiling, Wall
▶ Power adapter: USB5V 1A, type-c connector
▶ Working temperature: -10°C ~ 50°C
▶ Weight: Net weight 230 grams (actual weight shall prevail)
▶ Body size: 78*66*75mm (length x width x height)
✅ EASY SETUP WITH AFTER SALES SUPPORT
▶ Clear User Guide & Setup Video Included
▶ After Sales Support Through Live Chat & WhatsApp
✅ WARRANTY
▶ 6 Months Warranty.
▶ Warranty Cover On NVR DEVICE, WIFI CAMERA.
▶ Accessories (Mouse, Power Adapter) and Postage Fees (both way) are not cover in warranty.
▓▓▓▓ What is in the BOX ? ▓▓▓▓
1️⃣ 1x NVR WIFI TOUCH SCREEN 8CH
2️⃣ 4x Camera WIFI
3️⃣ 5x Power Adapter
4️⃣ 1x Mouse
5️⃣ 1x Lan Cable
6️⃣ 1x Screws Pack
7️⃣ 1x Manual
.::: F.A.Q :::.
Q1. What is Wi-Fi NVR SYSTEM?
A1. Wi-Fi NVR (Network Video Recorder) CCTV system is a video surveillance system that allows CCTV cameras to record video and audio digitally, and store the data on a network storage device such as a hard disk.
Unlike DVR (Digital Video Recorder) systems that record analog video on tape or hard disk, NVR systems record digital video through the Internet Protocol (IP) network. IP cameras can be directly connected to the network and send video data to the NVR through the network.
NVR systems provide several advantages, such as higher video quality, advanced analytics features, the ability to record and monitor video remotely over the Internet, and the flexibility of setting up a larger system using multiple cameras.
Q2. What do i need in order to use NVR SYSTEM?
A2. SriHome NVR system comes as a complete set, which includes the NVR, cameras, mounting brackets, and power adapters. You only need to prepare a hard disk.
Q3. Is it hard to setup?
A3. Super easy. Simply connect the power to the NVR and all cameras, connect the HDMI cable from the NVR's HDMI port to your monitor, and power on. All pictures will immediately display on the screen.
